Socket Weld Flanges Manufacturer in India

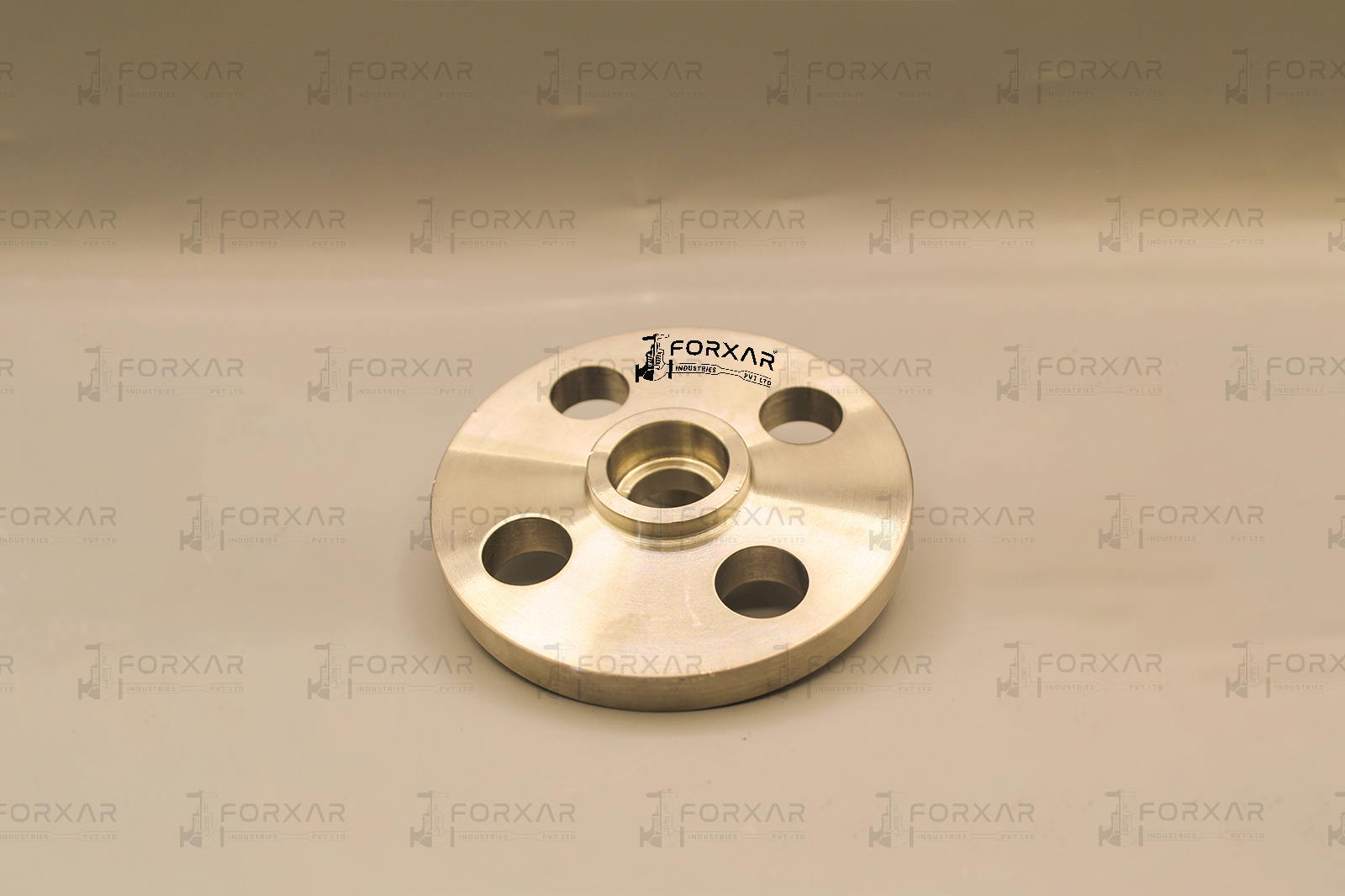

Forxar Industries Pvt. Ltd. is a trusted Socket Weld Flanges Manufacturer in India, offering precision-engineered industrial flanges designed for secure connections in small-diameter and high-pressure piping systems. Our Socket Weld Flanges, also known as SW Flanges or Socket Welding Flanges, are manufactured to provide mechanical strength, dimensional accuracy, and dependable performance in demanding industrial applications.

Socket Weld Flanges feature a recessed socket inside the flange bore that accommodates the pipe end. The pipe is inserted into the socket, positioned with the required expansion gap, and secured using an external fillet weld. This arrangement provides convenient pipe alignment and a strong welded connection.

Manufactured using carefully selected materials and precision machining processes, Forxar Socket Weld Flanges are suitable for industrial piping systems requiring compact dimensions, reliable pressure containment, and efficient installation.

Our industrial Socket Weld Flanges are used in oil and gas, chemical processing, petrochemical, power generation, and general engineering industries.

Why Choose Forxar – Socket Weld Flanges Manufacturer in India?

As an experienced Socket Weld Flanges Manufacturer in India, Forxar Industries focuses on manufacturing quality, precision engineering, material selection, and product reliability.

Key features and benefits include:

High-Pressure Applications: Suitable for selected high-pressure piping systems when correctly rated, welded, and installed.
Strong Welded Connection: External fillet welding provides a permanent mechanical attachment between the pipe and flange.
Easy Pipe Alignment: The recessed socket helps position the pipe before welding.
Compact Design: Particularly suitable for small-bore piping installations where space and accessibility are important.
Precision Machining: Accurately machined sockets, flange faces, and bolt holes support dependable assembly.
Material Versatility: Available in carbon steel, stainless steel, alloy steel, and selected special alloys according to project requirements.
Corrosion Resistance: Suitable material selection helps protect against corrosion in demanding process environments.
Customized Manufacturing: Material grades, flange dimensions, pressure classes, and inspection requirements can be specified according to approved drawings.

Forxar Socket Weld Flanges offer practical piping solutions for applications requiring mechanical strength, compact installation, and reliable performance.

Socket Weld Flanges Specifications and Material Options

Forxar manufactures and supplies Socket Weld Flanges according to applicable international standards, approved technical drawings, and customer specifications.

Common material options include:

Carbon Steel – ASTM A105
Stainless Steel – ASTM A182 F304 / F304L
Stainless Steel – ASTM A182 F316 / F316L
Low-Temperature Carbon Steel – ASTM A350 LF2
Alloy Steel – Selected ASTM A182 grades
Duplex and Super Duplex Stainless Steel
Monel, Inconel, Hastelloy, and other special alloys on request

Technical specifications and options:

Product Type: Socket Weld Flange / SW Flange
Nominal Pipe Size: Small-bore sizes within the applicable manufacturing standard
Pressure Classes: Class 150, 300, 600, 900, and 1500, subject to applicable ASME B16.5 provisions
Flange Facing: Raised Face (RF), Flat Face (FF), and other applicable configurations
Connection Type: Socket Weld with External Fillet Welding
Manufacturing Standard: ASME B16.5, where applicable
Inspection: Material verification, dimensional inspection, and specified quality examinations

Socket Weld Flanges must be selected based on pipe size, operating pressure, design temperature, material compatibility, welding requirements, and applicable piping codes.

For technical reference, visit the official ASME B16.5 Pipe Flanges and Flanged Fittings Standard.

How Do Socket Weld Flanges Work?

Socket Weld Flanges feature an internal recessed socket designed to accommodate the end of a pipe.

During installation, the pipe is inserted into the socket and positioned with the specified expansion gap between the pipe end and socket shoulder. This clearance is important to avoid excessive stress during welding and operation.

The flange is then attached to the pipe using an external fillet weld performed according to an approved welding procedure.

After welding and required inspection, the flange is connected to a compatible mating flange using suitable gaskets, studs, and nuts.

The socket arrangement supports accurate pipe positioning and provides a strong mechanical connection for suitable industrial services.

However, the socket joint contains an internal crevice, which can make it less suitable for certain highly corrosive, hygienic, or crevice-sensitive applications. For severe cyclic loading or other critical conditions, alternative welded connections may be required by the governing piping code.

Industrial Applications of Socket Weld Flanges

Forxar Socket Weld Flanges are used in various industrial piping installations where compact and reliable connections are required.

Oil & Gas Industry: Used in suitable small-bore process piping, utility connections, and auxiliary systems.

Petrochemical Plants: Suitable for compatible process lines and instrumentation-related piping requiring welded connections.

Chemical Processing: Used in industrial piping where material compatibility and the internal socket crevice are properly evaluated.

Power Generation: Applied in selected steam, water, compressed air, and auxiliary piping systems according to applicable design requirements.

Water Treatment: Suitable for pumping systems, equipment connections, and industrial water piping.

Industrial Manufacturing: Used for small-diameter pipe connections, equipment installations, and maintenance applications.

Socket Weld Flanges and Industrial Valve Solutions from Forxar

As a reliable Socket Weld Flanges Manufacturer in India, Forxar Industries also provides a range of industrial valves and engineered piping components designed for dependable fluid handling and process control.

Explore our specialized valve products:

Bellow Seal Gate Valve – Designed for dependable flow isolation and reduced external stem leakage in critical industrial applications.
Bellow Seal Globe Valve – Engineered for reliable flow regulation with enhanced stem sealing performance.
Bellow Seal Control Valve – Suitable for precise automated flow control and industrial process regulation.
Bellow Seal Euro Chlor Valve – Specialized valve solutions for suitable chlorine and chlor-alkali processing applications.

Our industrial flange and valve solutions support piping systems where material quality, operational efficiency, and long-term reliability are essential.

Frequently Asked Questions About Socket Weld Flanges

What is a Socket Weld Flange?

A Socket Weld Flange is an industrial pipe flange featuring an internal socket into which a pipe is inserted and attached using an external fillet weld.

What are the advantages of Socket Weld Flanges?

Socket Weld Flanges provide convenient pipe positioning, compact construction, and strong welded connections for suitable small-diameter piping applications.

What is the difference between Socket Weld and Slip-On Flanges?

Socket Weld Flanges have an internal shoulder that positions the pipe and typically require an external fillet weld. Slip-On Flanges slide over the pipe and are normally attached using internal and external fillet welds.

Are Socket Weld Flanges suitable for high-pressure applications?

Yes. Socket Weld Flanges can be suitable for high-pressure service when the flange pressure class, material grade, pipe size, weld design, and governing piping code permit their use.

What is the difference between Socket Weld and Weld Neck Flanges?

Socket Weld Flanges use a recessed socket and fillet welding, while Weld Neck Flanges feature a tapered hub and use a butt-welded connection. Weld Neck Flanges are often preferred for more demanding cyclic or fatigue-sensitive services.

Which materials are used for Socket Weld Flanges?

Common materials include ASTM A105 carbon steel, ASTM A182 stainless steel and alloy steel, ASTM A350 low-temperature carbon steel, and selected corrosion-resistant alloys.

Which standards apply to Socket Weld Flanges?

ASME B16.5 covers applicable Socket Weld Flange dimensions, materials, pressure-temperature ratings, and tolerances. Welding and installation requirements are governed by the applicable piping code and project specifications.

Contact a Trusted Socket Weld Flanges Manufacturer in India

Looking for high-quality Socket Weld Flanges for small-bore and high-pressure industrial piping applications?

Forxar Industries Pvt. Ltd. offers precision-engineered industrial Socket Weld Flanges and valve solutions for demanding engineering projects.

Contact our team with your required pipe size, pressure class, material grade, flange facing, quantity, and technical drawings for a customized quotation.

Forxar Industries Pvt. Ltd. – Engineering Flow. Delivering Reliability.
